RGB 100M Roll To Roll LED Strip Light Making SMT Machine

RGB 100M Roll To Roll LED Strip Light Making SMT Machine

Name: China RGB 100M Roll To Roll LED Strip Light Making SMT Machine Manufacturers Suppliers Factory - Good Price - Eton Automation
Brand: Eton
SKU: 302338369

RGB 100M roll to roll LED strip light making SMT machine Features Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll. Dual arm four modul, 17 nozzles for each mounting part, part A or part B can...

Send Inquiry

Features

RGB 100M roll to roll LED strip light making SMT machine

Features

Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.

Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

Model	HT-T9
Dimension
Length	3100mm
Width	2300mm
Height	1550mm
Total Weight	1700kg
Vision System
No. of Camera	5 PCS ( Digital camera)
No. of Camera	Vision alignment, MARK correction
Mounting Precision	±0.02mm
Mounting Height	≦5mm
Mounting Speed	200000~250000 CPH
Components	LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed	0.5mm
No. of Feeders Station	68 PCS
No. of nozzles	68 PCS

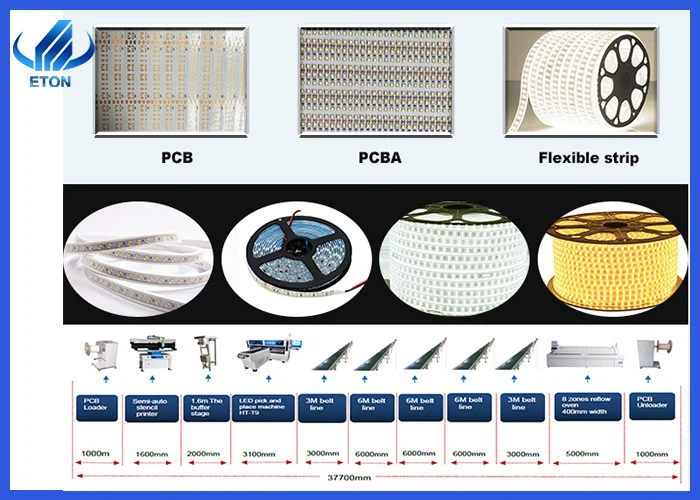

Machine application

HT-T9 is a high speed pick and place machine, which is apply for flexible light strips of any length

PCB Size:250mm*any length

5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.

product-700-500

Market

ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption. As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
