1000m LED Strip Machine 500K CPH ETON High Speed SMT Line Solution

1000m LED strip machine 500K CPH ETON high speed SMT line solution

Description

Feature ① HIGH PRODUCTIVITY

ETON Tech Adjustable Placement Head

Component picking position can be adjusted according to PCB pad pitch, min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor, capacitor,bridge rectifier etc. wide component range.

Unique Design Component Leaking Detection And Individual Component Refill Function

Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.

Ultra-high-speed-Capacity

The placement head adopt the method of two times picking and once placing.The placement time greatly minimized\with the improved placement way, excellent optimum capacity reach 500000CPH.

Feature ② FLEXIBLE PRODUCTION

Adjust the conveying platform according to various roll to roll strip,range 250±10mm,the max length range is

1M per cycle.

The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to

realize the function of two time picking and once placing.The range of feeding station is double of placement head,can produce four kinds of materials at the same time.

Intelligent electric feeder,supporting high-speed machine series.



Model	T9-2S
PCB
PCB Length Width	250 (±10mm)*Any Length
PCB Thickness	0.1-0.5mm
PCB Clamping	Vacuum adsorption, cylinder clamping, track width adjustable
Mounting Speed	Double side:500000CPH,single side:250000CPH(Optimum speed)
Components	LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc.

Machine application

T9-2S is a high speed pick and place machine, which is apply for flexible light strips of any length

3.1 PCB Size: 250mm*any length

3.2 For Applications

5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.

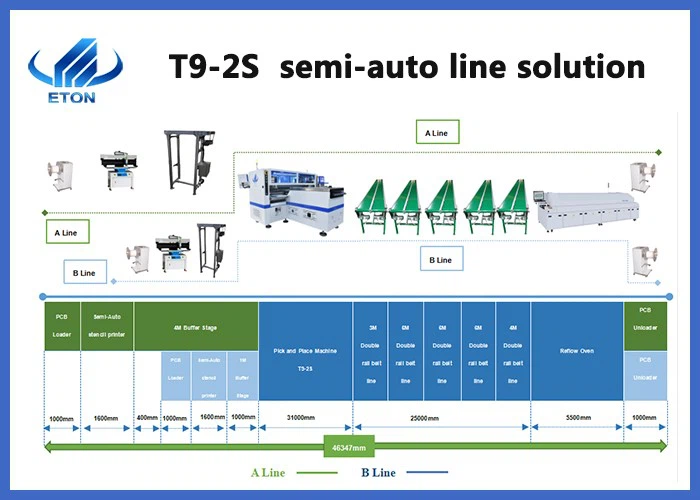

SMT Line solution

Shipping and Delivery

FAQ

Q. What is your actual speed of your products?

A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.

Q. How many components can your pick and place machine mount in a PCB board?

A. While this is for our clients needs and the size of the PCB board.

Q. What components is your machine mainly mounted?

A. For the multifunctional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED3014/3020/35285050, resistors, capacitors and rectifiers.

Q. How is the differences of your multifunctional machine and high-speed machine?

A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine KT10S with capacity of 48000 CPH, while high speed mounter machine T9-2S with 500000 CPH capacity.
