New Blazer Type Pick And Place Machine Special Price

Name: China New Blazer Type Pick And Place Machine Special Price Manufacturers Suppliers Factory - Good Price - Eton Automation
Brand: Eton
SKU: 211699447

New Blazer type pick and place machine special price Machine main features Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model Y axis double drive gantry, higher speed more stability The placement head adopt independent vacuum detection, improve the...

Send Inquiry

Features

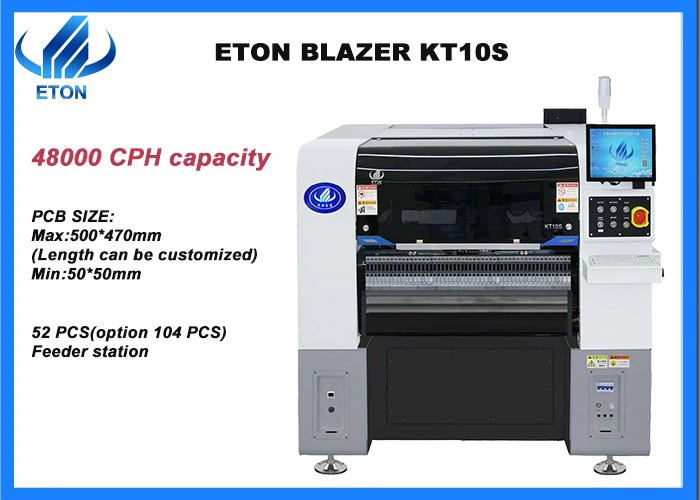

New Blazer type pick and place machine special price

Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model

Y axis double drive gantry, higher speed more stability

The placement head adopt independent vacuum detection, improve the placement performance

Off-line programming, save time of changeover cycle

Equipped coordinate import function, more intelligent

Machine main parameter

Model	KT10S
Dimension	146020151654mm
Total weight	2080kg
PCB size	Max:500470mm(Length can be customized) Min:5050mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS

Our Exhibitions

Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

product-486-590

Packages

As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.

product-700-500

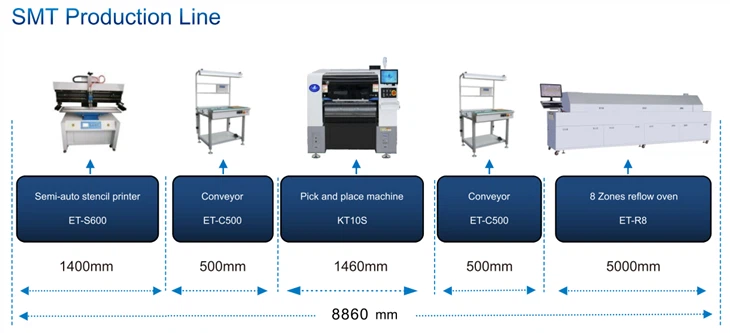

SMT Line solution

The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.

product-1220-555

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

product-700-500
