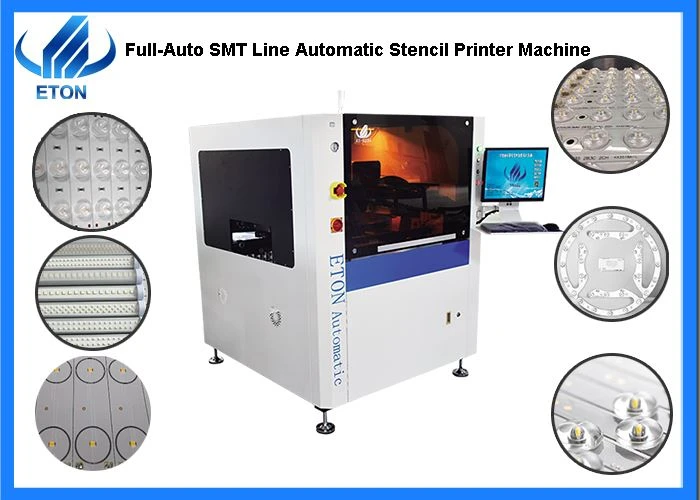

Full-Auto SMT Production Line Automatic Stencil Printer Machine

Full-Auto SMT Production Line Automatic Stencil Printer Machine



Machine features



The optimally designed module drive structure effectively improves the stability of the platform calibration and realizes ultra-small transmission under fine-tuning, so that the machine can meet the printing requirements of higher precision. The structure is simple and reliable, the adjustment is convenient,and the height adjustment of the support PIN of the PCB board with different thickness can be quickly realized.



Machine parameter

Screen Frames	Max Size	737mm
	Min Size	470mm
	Thickness	25~40mm
PCB Size	Max: 520*350mm Min:50*50MM
PCB Thickness	0.6~6MM
PCB Warpage	<1%
Transport height	900±20mm
Transport direction	Left-Right; Right-Left;Right-Right;Left-Left
Transport speed	Max 1200mm/s programmable
Product changeover	<5 min
Control method	PC control



Company profile:

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service.

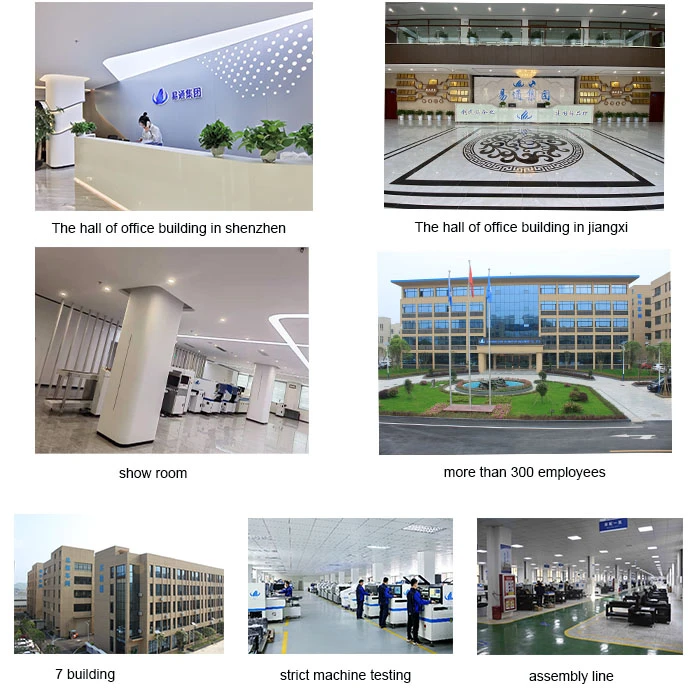

1.We have our own industrial park with an area of 50,000 square meters, which is specially used to develop and manufacture various SMT equipment.

2.More than 15 years LED lighting field experiences , provide the most suitable SMT program to every client.

3.Has own professional R&D team, has Indian engineer, Indian office,Egypt engineer, etc. Can provide support promptly.

Why choose us?



We have a variety of speed placement machines to meet the customer's choice.



And our top speed has reached 500,000 CPH.



The software of the placement machine is independently developed by us, which

can better guarantee the use of customers. And we will also give customers high-tech software for free.



We can supply all the machines in the production line.



Free installation and training.



One year warranty for the whole machine.



Production craft Introduction



Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.

Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.

Conveyor: Inspect the quality of assembly and welding to cushion the production line.



Introduction of exhibition



Our company go to many places to participate in the exhibition.

Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.

Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.



Market

As for the 10 years experiences of trading with more than 20 countries and region, we have many partner of foreign countries, as South, Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. For more you can see is as blowing:



Client

Our products not only sell well in China, but also exported to more than 20 overseas countries,

such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.Some

listed companies including Changfang, Wanrun Technology, Mulinsen, Linghang, Century Classic, Zhuhai Taobo, Huizhou Guozhan Electronics, etc. have become our customers.
