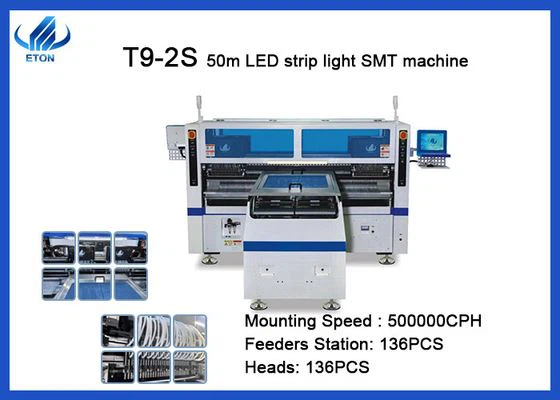

100m Led Flexible Strip Making Machine T9-2S

Features

1.Ultra mounting speed: optimum capacity reach 500000CPH.

2.Mounting head: 4 mounting heads, each mounting head has 34 PCS heads, total has 136 PCS heads

3.Feeder station: total has 136 PCS heads

4.Mounting mode: realize the function of two time picking and once placing; produce four kinds of materials at the same time;

5.PCB size:any length* 250(±10)mm, the max length range is 1M per cycle.

6.Camera: 10 sets of camera, high accuracy recognition vision camera ; no pause to detect the presence or absence of components, component adsorption state, prevent placement errors



Technical parameter

T9-2S
PCB size	250(±10)mm* any length
PCB thickness	0.1-0.5mm
Mounting way	Group picking and group placing
Mounting height	≦5mm
Mounting speed	Double side: 500000 CPH, Single side: 250000 CPH
Feeding way	Intelligent electric feeder with double motor
No. Of feeder station	Double side 136 PCS, Single side 68 PCS
No. Of head	Double side 136 PCS, Single side 68 PCS



SMT Line solution



Why choose us?

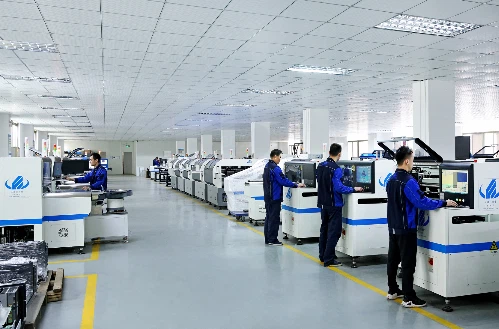

ETON was founded in 2011. Our company is the leading manufacturer of global led light high speed pick and place machine. We have more than 10 years of R&D experience and mature technology and our products are exported to more than 20 countries and regions, including South Korea,India, Vietnam, Tunisia, Iran etc. ETON obtained a number of intellectual property technologies ,including 9 invention patents, 112 practical patents,12 software copyrights. And we have also won many prestigious awards, such as Shenzhen high-tech enterprise, Guangdong high-tech enterprise, China high-tech enterprise, Shenzhen TOP Brand and so on.



Our Exhibitions

Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 20 countries.

Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.



Package and delivery

Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.

vacuum packing:Advantages of moisture proof,dust proof and so on.

wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.



FAQ

Can you provide a whole line solution?

Yes , we can. We can supply SMT line and some LED production lines.



Can we customize the machine?

Of course, all of our machine can be customize.



Do you have oversea after sale service?

Yes, we can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.



This is the first time I use this kind of machine, is it easy to operate?

It is easy to operate, the language of the machine is English, and we will teach you the basic operation. If you still have any questions, please contact us by e-mail, wechat, phone, Skype,Whatsapp or other contact information.



How long the delivery?

About 30 days.
