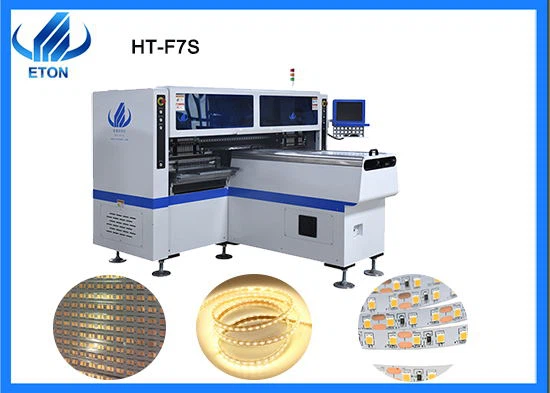

180000CPH 34heads Professional High Speed Mounter

Name: China 180000CPH 34heads Professional High Speed Mounter Manufacturers Suppliers Factory - Good Price - Eton Automation
Brand: ETON
SKU: 201757159

HT-F7S:180000CPH 34heads professional high speed mounter Technical parameter Details ETON tech adjustable placement head. Component picking position can be adjusted according to PCB pad pitch , min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor , bridge rectifier etc . wide...

Send Inquiry

Features

HT-F7S:180000CPH 34heads professional high speed mounter

Technical parameter

Model	HT-F7S
Length	2700mm
Width	2300mm
Height	1550mm
Total Weight	1700kg
PCB size(L* W)	1200330mm Min；100100mm
PCB Thickness	0.5-5mm
PCB Clamping	Adjustable pressure pneumatic
Mounting mode	Group to take and group to mount
System	Windows 7
Software	R&D Independently
Display	Touch screen monitor
Input Device	Keyboard, mouse
No.of camera	5 sets Digital camera（Digital camera）
Components	LED3014/3020/3528/5050、capacitors、resistors、bridge rectifiers etc
No.of feeders station	68PCS
No.of nozzles	34PCS

Details

ETON tech adjustable placement head. Component picking position can be adjusted according to PCB pad pitch , min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor , bridge rectifier etc . wide component range .
2 sets of camera with suction nozzle: flight identification, detection of component adsorption state, record PCB board leakage situation. Adjust nozzle spacing.
2 sets of Feida cameras: detect whether there are components, adjust the Feida spacing
1 sets of mark cameras: Identify mark points.
Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .

Certification

We got 9 invention Patents, 112 practical patents,12 software copyrights.

Patent number: ZL 2011 2 0237740.9\ ZL 20 11 2 0334606.0\

ZL 2012 2 0178869.1\ ZL 2012 2 0415505.0\

ZL 2012 2 0415044.7\ ZL 2012 2 0415356.8\

ZL 2012 2 0415061.0

Company

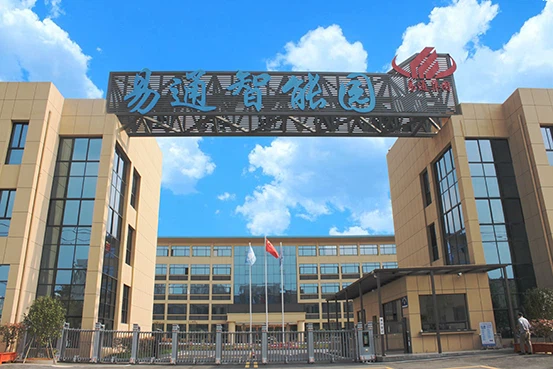

Shenzhen Eton Automation Equipment co., LTD.is a professional manufacturer of pick and place machine.Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine.Eton also has its own industrial park in Jiangxi. We are a powerful company with our own R & D production and sales.And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
