ETON Full Automatic Vision Stencil Printer Machine
ET5235 Full automatic vision stencil printer machine features: PCB Transport and Clamping system:the PCB loading direction can be selected and combined freely,unique crafted internal gear conveyor belt to prevent jamming, adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh Scraper system: cast aluminum scarper beam to ensure smoother running of scarper, programmable suspension self-adjusting stepper motor drives print head,embedded scale, never fall of. Operation interface: easy to learn and easy to use friendly operation interface, make program files with teaching and navigation functions, with prompts for each step,one key switch between Chinese and English,with operation log, fault record analysis and diagnosis and other functions
Features
ETON Full automatic vision stencil printer machine
ET5235 Full automatic vision stencil printer machine features:
PCB Transport and Clamping system:the PCB loading direction can be selected and combined freely,unique crafted internal gear conveyor belt to prevent jamming, adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh
Scraper system: cast aluminum scarper beam to ensure smoother running of scarper, programmable suspension self-adjusting stepper motor drives print head,embedded scale, never fall of.
Operation interface: easy to learn and easy to use friendly operation interface, make program files with teaching and navigation functions, with prompts for each step,one key switch between Chinese and English,with operation log, fault record analysis and diagnosis and other functions
Image and optical system:X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side
Machine main Parameter:
Model | ET5235 | |
Screen Frames | Max Size | 737mm |
Min Size | 470mm | |
Thickness | 25~40mm | |
PCB Size | Max:520*350mm;Min:50*50mm | |
PCB thickness | 0.1~0.6mm | |
PCB warpage | ＜1%(Max PCB diagonal) | |
Transport height | 900±20mm | |
Transport direction | Max 1200mm/s Programmable | |
PCB Board location | Support system | Magnetic Pin/Up-down table adjusted by manual |
Clamping system | Unique top flattened ,side clamping | |
Print head | Two independent direct- connect motor- drive print heads | |
Squeegee speed | 6~300mm/sec | |
Squeegee pressure | 0~10kg/cm2 | |
Squeegee type | Steel scraper(Standard), PV scraper(Option) | |
Stencil separation speed | 0.1~20mm/sec Programmable | |
Cleaning system | Dry,Wet,Vacuum(Programmable) | |
Printing accuracy | ±0.025mm | |
Cycle time | ≤9s(Exclude printing&cleaning) | |
Product changeover | ＜5Min | |
Control method | PC control | |
Dimension | 1240(L)*1450(W)*1650(H)mm | |
Weight | Approx: 700kg | |
PCB transfer overhead height | 10mm | |
Air required | 4.5~6kg/cm2 | |
Exhibition:
In order to allow more companies and customers to be recognized by us and expand the brand effect of the company's machines. Except during the epidemic, we will participate in exhibitions every year, including domestic exhibitions and foreign exhibition.

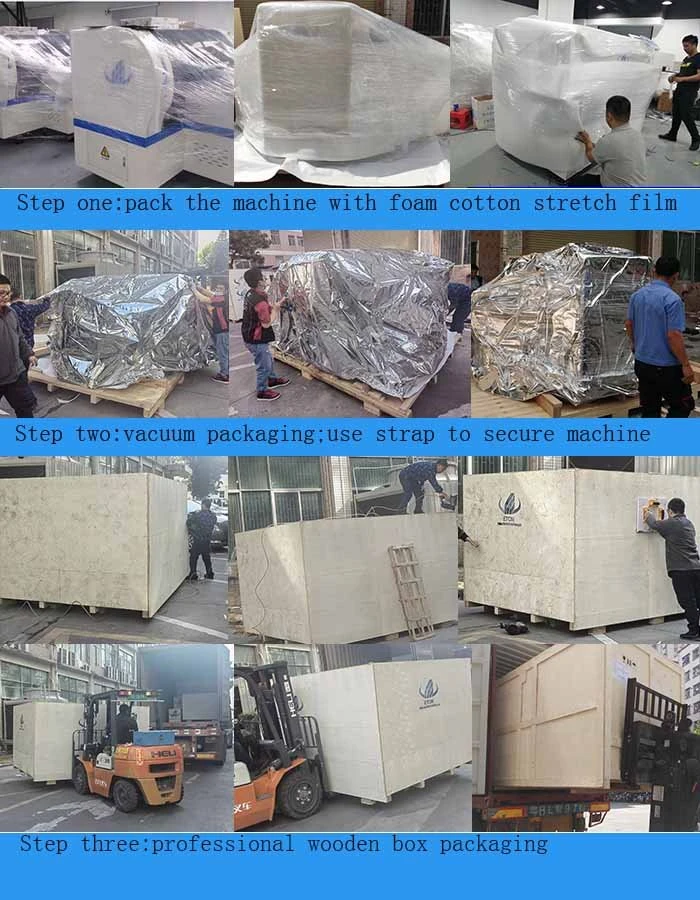

Packing:
We have to pack in vacuum wooden cases to ensure the safety of the goods in the transportation process. Our packaging process is in the charge of professionals, and foreign trade salesmen track the delivery throughout the process
Our advantages:
1. We have an industrial park covering an area of 50,000 square meters in jiangxi
2. We have been in this business for over ten years
3. ETON has decades experience R&D experience in SMT industry equipped with core technology
4. ETON occupied over 80% big led lighting industry market, machine hot sell to more than 20 countries.
Services:
FAQ:
1.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
2.Is your software interface in English?
English interface and Chinese interface are both available.
3.This is the first time I use this kind of machine, is it easy to operate?
Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
