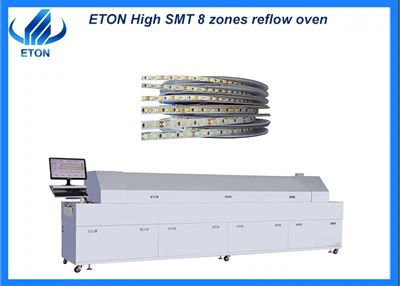

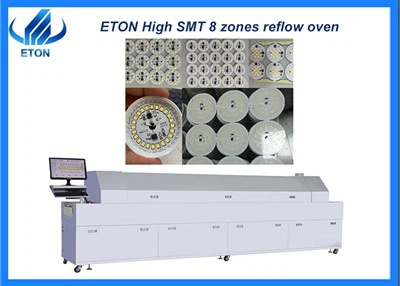

Reflow Oven Low Noise SMT 8 Zones Heating

Reflow oven low noise SMT 8 zones heating



Features

Simplified and traditional Chinese MMI operation interface and artificial intelligence software control greatly facilitate the user's use.

It has a complete online temperature test curve and analysis, storage, recall and printing functions.

Dedicated temperature acquisition module, high accuracy and fast speed, with cold junction compensation function.

Temperature collection adopts RS-485 interface, which is convenient for remote device temperature monitoring.

With timing automatic shutdown function.

Host computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input.

Using PLC control, the temperature control is stable and accurate, and the temperature of each zone is individually controlled.

The motor is imported, high-quality,and high-temperature-resistant, with good structure and good heat dissipation, to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow.



Delivery system	PCB maximum width	450mm mesh belt, no lead rail
	Transport direction	left-right,right to left(option)
	Conveyor belt height	Mesh belt 880±20mm
	Delivery method	Mesh belt drive + rail (optional)
	Conveyor speed	0-2000mm/min
Control System	power	380V 50/60Hz Three-phase five-wire AC:380V 50Hz
	Starting power	28KW
	Working power	7KW
	Heating time	Around 15 mins
	Temperature control range	Room temperature～350℃
	Temperature control method	PID control + SSR drive
	Temperature control accuracy	±1℃
	Abnormal alarm	Abnormal temperature alarm
Machine system	Machine dimensions(L*W*H)	5000mm*1000mm*1500mm
	Machine weight	1200kg



Market

As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:



Service

Maintenance period 1 year

One year warranty during warranty any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.

According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

Shipping and Delivery

FAQ

Q.What is your merits of the machine to others production?

A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.



Q. If I need a perfect line of the machine can you supply?

A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.



Q. How was your services?

A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.



Q. Can you accept D/P or D/A as the payment term?

A. For our regular payment terms, we usually use T/T.
