Led Automatic Machines For DOB Bulbs 12W CPH
led automatic machines for DOB bulbs 12W CPH The features of YT402 led automatic machines for DOB bulbs 1. YT402 has changed the traditional feeding way, add the docking cart, smart double head tape feeder as new feeding way, which can achieve stable, accurate and high speed feeding 2. YT402...
Features
led automatic machines for DOB bulbs 12W CPH
The features of YT402 led automatic machines for DOB bulbs
1. YT402 has changed the traditional feeding way, add the docking cart, smart double head tape feeder as new feeding way, which can achieve stable, accurate and high speed feeding
2. YT402 also has Adopted the fixed line scan camera and mark camera, which can achieve high precision mark recognition system, also is apply to any shape mark and lens
3. YT402 has Adopted the brand new self-developed high precision placement head, it is the high speed multi modular head and non replace modular head
4. For the YT402 pick and place machine, its each placement head adopts the independent detection function, it can improve placement performance.
The Parameter of YT 402 led automatic machines for DOB bulbs
model | YT 402 |
Mounting speed | 120000 CPH(optimum speed) |
Components range | Min 0201-10*10mm packages and IC etc |
No. Of feeder station | Double side docking cart slot 32 PCS, tape reel packages : 64PCS(single side docking cart slot 16 PCS, tape reel package: 32PCS),freely switching between docking cart and IC tray feeder |
No. Of heads | Double side: 40 PCS(single side: 20 PCS) |
Feeding way | Intelligent double head feeder |
PCB size | MAX size: 500*450mm(single PCB) 500*300MM(double PCB) MIN size: 50*50mm |
PCB thickness | 0.5-4.5mm |
PCB clamping | Cylinder clamping, track width adjustable |
rail | 2 rail, 2 gantries( rail 1,4 are fixed rail) |
No. Of camera | 4 set (digital camera) |
X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |

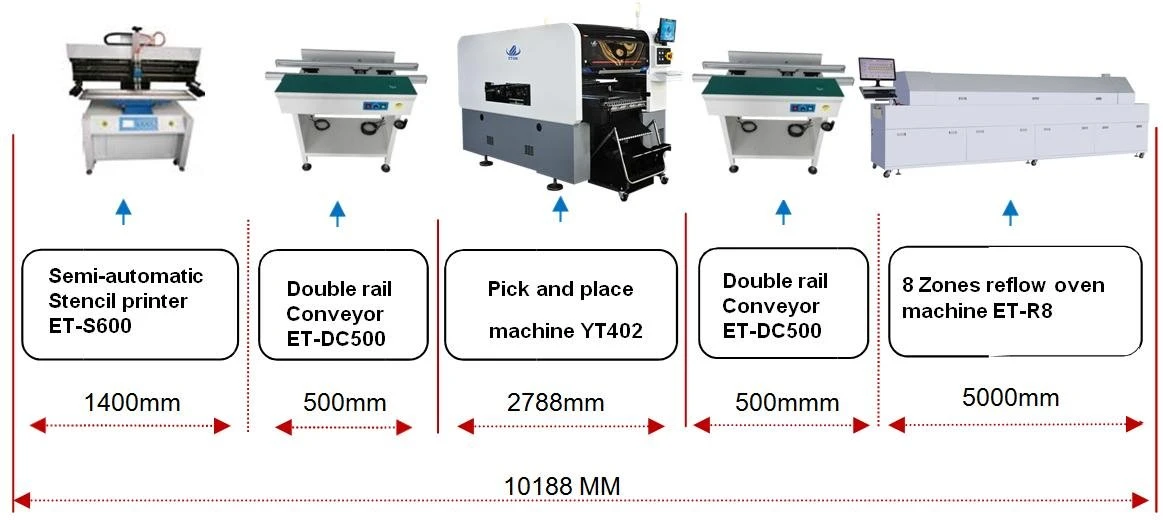

The production SMT line of led automatic machines for DOB bulbs
Semi-automatic production lines require less space, lower costs and more flexible production.
Applications and components of led automatic machines for DOB bulbs
Applications: Multifunctional pick and place machine YT402 has a wide range of applications, including led light ( bulbs, DOB, street light, down light ceiling light etc. ) , power driver, electric board, LED display etc.
Components: led chips, resistor, capacitor, IC, inductance, crystal, shaped components etc. It is apply to 0201~10mm tape reel package and IC tray feeder.
Company profiles
The top manufacturer of SMT pick and place machine in China;
Help 80% clients of led lights to set up SMT production lines and provided SMT solutions in China.
have more than 11 years experience.
export to more than 20 countries and regions, India, Egypt, Turkey, South Africa, Pakistan, and so on
The intelligent industry Park also was set up in 2020, all of our machines are produced and manufactured by ourselves and software is R&D by our own engineers.
Certificates
9 invention patents, 112 practice patents, 12 software patents
Package and delivery
There are three main modes of transport: sea, land and air. Customer can choose the appropriate mode of transportation according to the needs
Packing: The equipment shall be packed in wooden cases conforming to international standards to ensure that the equipment will arrive at the customer's factory intact
