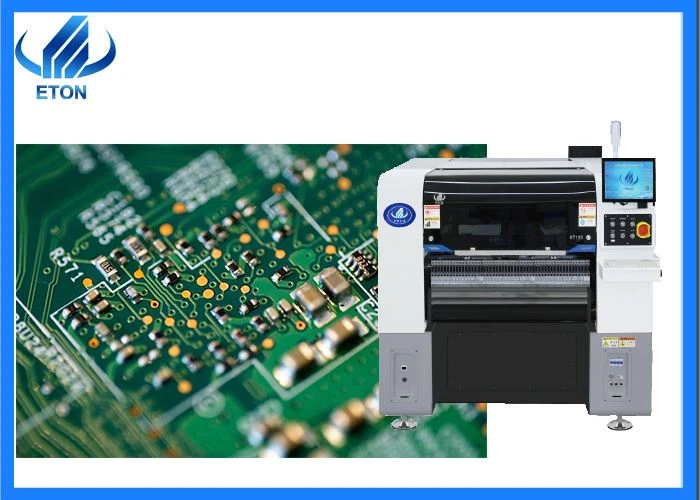

SMT Mounter KT10S X/Y/Z Magnetic Linear Motor

SMT Mounting Machine KT10S: Magnetic Linear Motor, Double Drive Gantry pick and place machine



Machine main parameter

Model	KT10S
Dimension	1460*2015*1654mm
Total weight	2080kg
PCB size	Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS



Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model

Y axis double drive gantry, higher speed more stability

The placement head adopt independent vacuum detection, improve the placement performance

Off-line programming, save time of changeover cycle

Equipped coordinate import function, more intelligent



DOB Bulb making machine line

DOB Bulb making machine SMT Line is included stencil printer machine, conveyor, pick and place machine, reflow oven machine.

And this line is also not only suitable for making DOB, but also could be produce other led lighting, like the down-light, street light, panel light, driver board, etc.



Packaging and Delivery

Packaging: standard is plastic film wrap the LED SMT machine, then load into one 20" container; Wooden box packing can be customized.

Delivery: 35-40 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery



Service

We can provide you with excellent service, we also have professional overseas engineers to your factory provide install, training service until you can operate the machine adroitly.

1.We can provide you with the whole production line.

2.Our software is R&D independently.We can offer software upgrade for lifetime for free

3.We have 50,000 square meters of industrial park. The production strength is abundant, occupies the first place in the domestic profession.

4.If you have any problem with the product, we will have overseas engineers come to your home for free repair or replacement within one year. Because we have offices overseas and local engineers.



FAQ

Q: Do you have a product certification certificate?

A: Our products have CCC, CE, SRIA certification.



Q: How about the after-sale service? How about the warranty?

A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.



Q: Are you a trade company or a manufacturer?

We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
