SMT Multifunctional 90000 CPH LED Light Mounter
SMT multifunctional 90000 CPH LED light mounter Machine main features HT-E8D can produce 2 different products at the same time with high capacity HT-E8D has 4sets of camera to achieve flight identification and Mark correction HT-E8D is equivalent to two HT-E8S and the enhanced version of HT-E8S....
Features

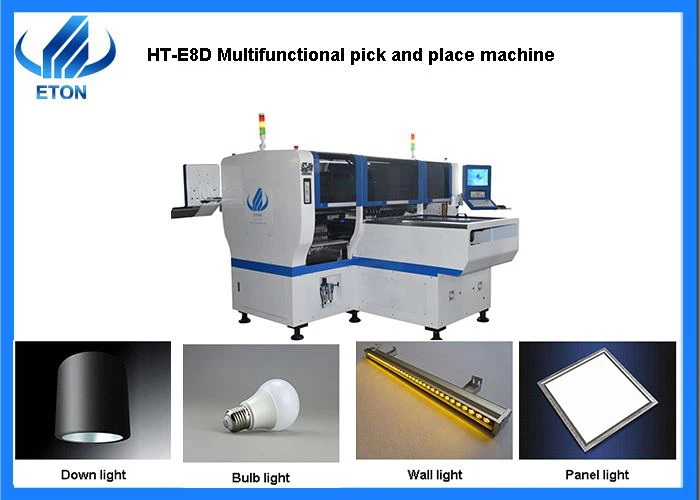

SMT multifunctional 90000 CPH LED light mounter
Machine main features
HT-E8D can produce 2 different products at the same time with high capacity
HT-E8D has 4sets of camera to achieve flight identification and Mark correction
HT-E8D is equivalent to two HT-E8S and the enhanced version of HT-E8S.
HT-E8D can achieve group to pick and separate to place, separate to pick and separate to place.
HT-E8D can mounted all kinds of production: lighting (LED bulbs, tubes, panel light, street light, flexible strip), lens, household appliance, power driver and so on.
Machine main parameter
Length | 3150mm |
Width | 2250mm |
Height | 1650mm |
Total weight | 2500kg |
PCB Length width | Max: 1200*300mm Min: 100*100mm |
PCB Thickness | 0.5-5mm |
Display | Touch screen monitor |
Transmission speed | ≤1000mm/sec |
Conveyor transmission | Max length: 1200mm |
Mounting precision | ±0.04mm |
Component height | <15mm ( Automatic changing) |
Transmission direction | Both direction (Option ) |
No. Of feeders station | 48PCS Double module |
No. Of head | 24PCS Double module |
Power consumption | 8KW |
X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
Our advantage

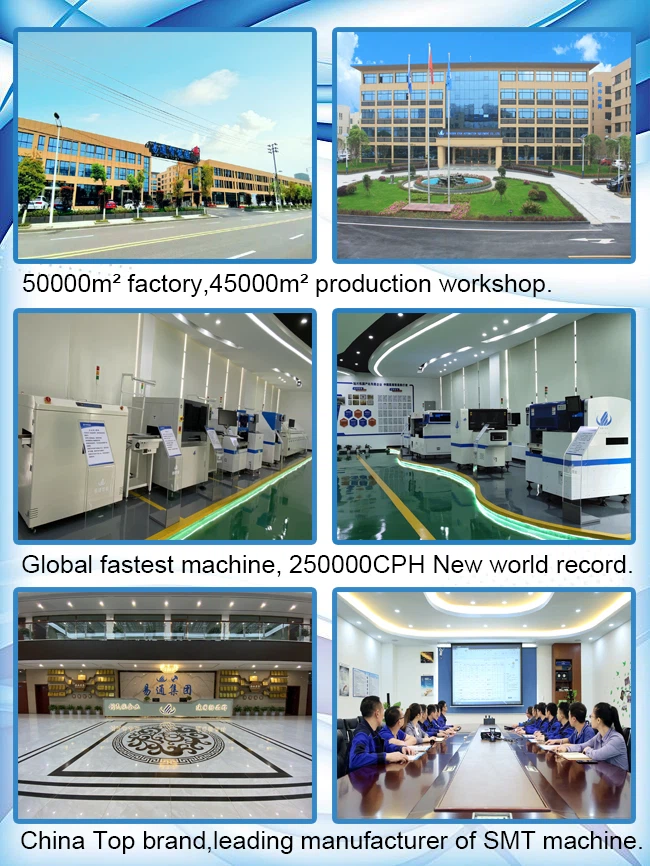

1. Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
2. ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
3. The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
4. ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
5. ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Certificates
Nowadays, ETON has obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights.
Our Exhibitions
ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers. Our exhibitions include domestic Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition, international exhibitions in India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.
Shipping and Delivery
Our products support three modes of sea, land and air. And use the most suitable wooden box packing to ensure that the equipment intact reaches the customer factory.
