SMT Mounting Machine 250000CPH Dual Arm

High Speed SMT Mounting Machine 250000CPH Dual Arm 68 PCS Nozzles



Features

Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.

producing with 4 types materials at the same time with high capacity .

available for borad with any proportion of LED chip and resistor.

Calibraton automatcally, high-precision, available for RGB

Accessories imported top brand ensure to high quality

Elxclusive patend technology:Group to take and Group to mount

Cylinder

Imported from Japan THK

Drive the machine for linear reciprocating motion High precision, strong flexibility, strong sealing and not easy to deform, strong adaptability.

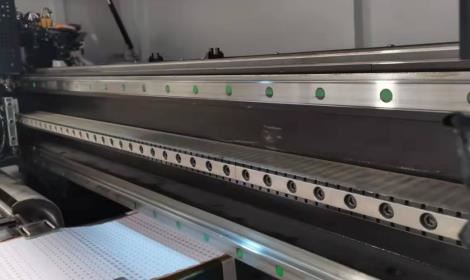

Grating scale

AIRTAC Brand from Taiwan, China

Support and guide moving parts, reciprocating linear motion in a given direction, used in mechanical structures with high precision requirements.



Model	HT-F9
system	windows 7
software	R&D indepentently
display	touch screen monitor
input device	keyboard,mouse
No.of camera	5PCS(Digital camera) vision alignment, mark correction
PCB clamping	Adjustable pressure pneumatic
Mounting mode	Group to take and group to mount
Mounting speed	200000-250000CPH
No.of feeders station	68PCS
No.of head	68PCS
power	380AC 50Hz
Power consumption	6kw
operating environment	23℃±3℃

Application

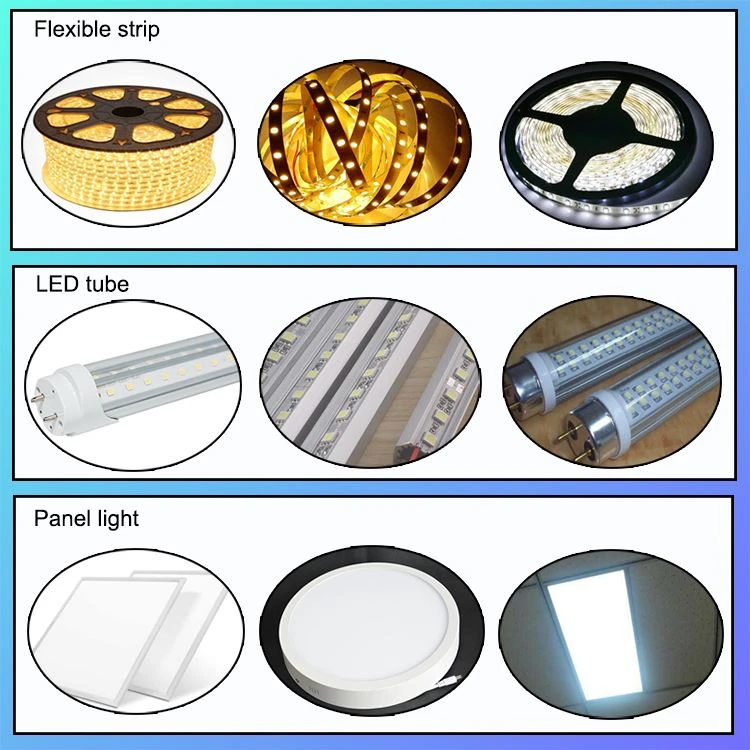

Show the photos. suitable for rigid PCB and LED flexible strip, led tube, panel light.

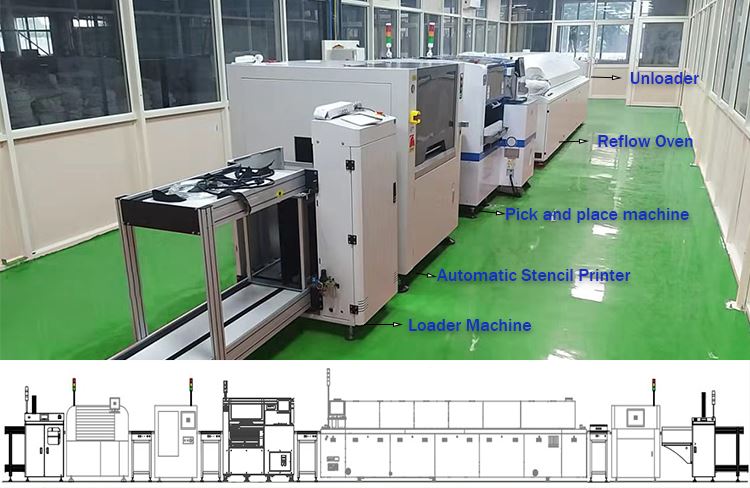

SMT whole line and machine



ETON is Top brand of pick and place machine in China. over 10 years LED lighting field, professional R&D team and after sales service team.

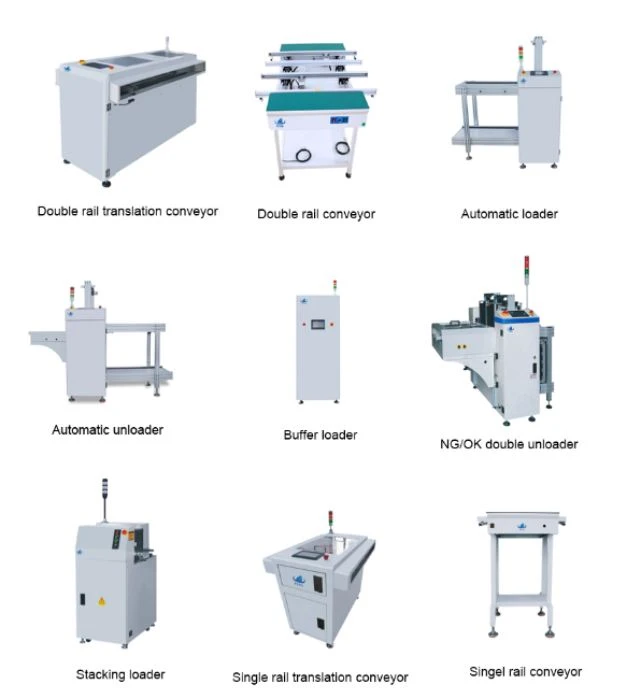

ETON supply whole SMT line machine, mainly included : Automatic stencil printer, Semi-automatic stencil printer, Conveyor, Pick and place machine, Reflow oven machine, Loader, Un-loader machine, PCB cleaning machine, stencil printing machine, etc.







Application Company show

Efficient team: We provide the most systematic solution for you. The best suggestions of full SMT line equipment according to your budget and site.



Competitive price: We are directly manufacture of the ETON pick and place machine, so we can give you the best competitive price with high quality materials .



High quality: We have strictly quality control during all production from raw materials to the finished machine.



High efficiency : All machines parts are made by ourselves, so it's convenient to control the time schedule and quality timely.







Our Exhibition

ETON got more than 14 years R&D experience in SMT industry equipped with core technology

ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.

Our machines are exported to many overseas countries, we have participated in exhibitions in China, India, Turkey, Egypt, Pakistan, Tunisia, Vietnam, Thailand, Germany, Russia and other countries and regions, so that more overseas customers know us.





FAQ

Do you have oversea after sale service?

We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support.

Abroad, we have India office, Indian engineer, Jerusalem office, engineer, Egyptian engineer, etc.



How is the training?

After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will

train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make

it through, we also have special one-on-one online training and video

tutorials..
