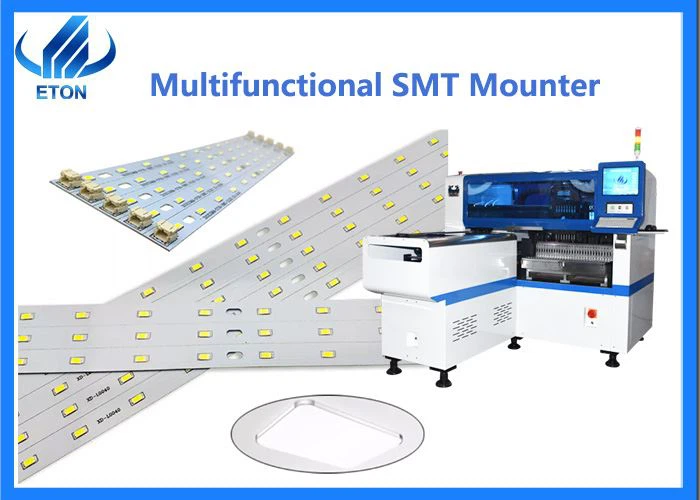

Single Module Led Tube 12 Head SMT Mounter

Single module Led tube 12 head  atomatic pick and place machine

1.Product introduction:

(1) HT-E8S:Single module magnetic linear motor multifunctional pick and place machine

(2) Mounting components:Led chip,capacitors,resistors,lens,IC,shape components,etc.

(3) Components:Min.size0402 Max.height 15mm

(4) Application:power drive. Electric board. Lens. DOB bulb.linear bulb. Household appliance etc.





2.Machine technical parameter:

Model	HT-E8S-1200
Dimension(L*W*H)	2550*1650*1550mm
Weight	1700kg
PCB length width	Max:1200*500mm;Min:100*100mm
PCB thickness	0.5~5mm
Mounting mode	Group picking and separately placing, separately picking and separately placing
Mounting height	<15mm(automatic changing)
Mounting speed	45000cph
Power consumption	4KW
No. Of feeders station	28 PCS single module
No. Of head	12 PCS Single module





3.Application:

This machine designed for many kinds of PCB boards. Using newest high magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines.It mainly suitable for LED tube,flexible strip light, lens, power drive and so on.



4.Company profile:

Shenzhen ETON Automation Equipment Co.,Ltd.Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,

(1)Experience: It has more than ten years of research and development experience and LED industry service experience.

(2)Industrial park: With an industrial park of 50,000 square meters, focusing on the R&D and production of the SMT industry.

(3)Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 30 countries.



Transportation advantage

By sea: it’s convenience,cheapness,and strong carrying capacity

By railway: it’s economical and affordable,with large transportation capacity,which is more suitable for inland countries.

By air: it’s convenient and fast,which is more suitable for urgent items.



FAQ



Q:Is it safe during the delivery?

A:All the machine is packed safely,by standard strong wooden carton with vacuum package.



Q:What is your transportation?

A:Sea transportation,land carriage and air transportation is OK.



Q:4.How is your training?

A:We will send our engineer to your factory to install machine and training freely.If client is India,we have service office in India,can support quickly.



Q:If I have no experience,The machine is easy to use?

A:Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
