Pick And Place Machine Making All Kinds Of LED Lighting
video
Pick And Place Machine Making All Kinds Of LED Lighting

Pick And Place Machine Making All Kinds Of LED Lighting

Dual mode group, dual system multi-function chip mounter, can produce two different products at the same time. There are 48 Feida in the dual mode group, 24 Feeder in each module, 24 suction nozzles in the dual mode group, and 12 suction nozzles in each module

Send Inquiry

Features

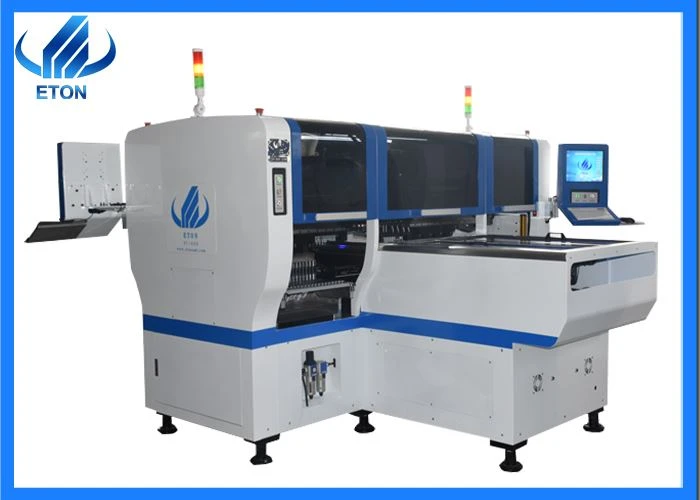

Pick and place machine making all kinds of LED lighting

Introduction of machine

1.Dual mode maglev multi-function high-speed chip mounter

Dual mode group, dual system multi-function chip mounter, can produce two different products at the same time. There are 48 Feida in the dual mode group, 24 Feeder in each module, 24 suction nozzles in the dual mode group, and 12 suction nozzles in each module

2.PCB board

Maximum: 1200*300mm

Minimum: 100*100mm

3.Mounting

Equipped with lamp beads, lenses, capacitors, resistors, IC and various special shaped components The minimum mounting of 0402 components and the maximum mounting of 15mm are suitable for mounting various LED lamps, such as LED bulb, DOB bulb, panel lamp, downlight, street lamp, lamp tube, soft lamp belt, display screen, circuit board, etc

4. Camera

Four sets of cameras, flight recognition visual alignment, mark correction, imported camera Hikvision, improved recognition accuracy



Parameter

Dimension


Length

3150mm

Width

2250mm

Height

1650mm

Total Weight

2500kg

PCB


PCB Length Width

Max:1200*300mm Min:100*100mm

PCB Thickness

0.5-5mm

PCB Clamping

Adjustable pressure pneumatic

Mounting Mode

Group picking and separate placing\separate picking and separate placing

O.S.


System

Windows7

Software

R&D independently

Display

Touch screen monitor

Input Device

Keyboard, Mouse

Vision System


No. of Camera

4 sets of imported camera

Vision for the flight identification, MARK correction


Mounting Precision

±0.04mm

Mounting Height

<15mm (Automatic Changing)

Mounting Speed

90000 CPH

Components

LED , capacitors, resistors, IC,shaped components, etc.

Components Space

0.2mm

No. of Feeders Station

48 PCS

No. of nozzles

24 PCS

Feeding way

Electric feeder with double motor

 HT-E8D-1200 NEW 1

SMT PRODUCTION LINE

1. Stencil Printer machine: use steel screen to print solder paste onto the solder pad of PCB

2. Conveyor: it plays the role of transmission and buffer

3. Pick and Place Machine: mount components on the designated position of PCB board

4. Reflow Oven: pass the PCB board through the reflow soldering furnace and melt the solder paste to make the components and PCB board adhere better

e8d 1200 production line

FAQ

Q1:What kind of service I can have, if I buy machine from ETON ?

A:We will give you install and training. It is free for you. And we will sent engineer with you.

Q2:What's about the guarantee of the machines?

A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.

Q3:Did you develop your own machine？

A:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
