68 Heads LED Strip Light Roll To Roll
Product Features Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with 4 types materials at the same time with high capacity , available for board with any proportion of LED chip and resistor . Dual arm four module ,17 nozzles for each mounting part , part A / B /...
Features
Product Features
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip. Producing with 4 types materials at the same time with high capacity , available for board with any proportion of LED chip and resistor .
Dual arm four module ,17 nozzles for each mounting part , part A / B / C / D can be mounted separately or synchronously .
Calibration automatically , high precision , available for RGB .
Exclusive patent technology: Group to take and group to mount .
Technical parameter
|
Model |
HT-F9 |
|
Length |
2700mm |
|
Width |
2300mm |
|
Height |
1550mm |
|
Total Weight |
1700kg |
|
PCB size(L* W) |
Max:1200*300mm Min；100*100mm |
|
PCB Thickness |
05-5mm |
|
PCB Clamping |
Adjustable pressure pneumatic |
|
Mounting mode |
Group to take and group to mount |
|
System |
Windows7 |
|
Software |
R&D Independently |
|
Display |
Touch screen monitor |
|
Input Device |
Keyboard, mouse |
|
No.of camera |
5sets（Digital camera） |
|
Components |
LED3014/3020/3528/5050、capacitors、resistors、bridge rectifiers etc. |
|
No.of feeders station |
68PCS |
|
No.of nozzles |
68PCS |
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
FAQ
Why did I choose your company？
Our company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 utility patents, and 12 software copyrights. With its original solution, rigorous quality management, and perfect after-sales service system, the company has rapidly developed into a highly influential manufacturer in the field of pick and place machine equipment.
How do you guarantee product quality?
We have a dedicated department responsible for parts procurement and product quality control. Of course, your technical consultant will follow up during the entire production process. During the installation of the pick and place machine, we will have specialized engineers to perform pre commissioning to ensure product quality.
Hot Tags: 68 heads led strip light roll to roll, China, suppliers, manufacturers, factory, price, cheap, quotation, led strip light manufacturing machine, led tv strip light making machine, Led Light Making Machine in Led Tubes, Led Strip Smt Pick And Place, LED Light Pcb Processing Pick And Place Machine, led manufacturing machine line
You Might Also Like

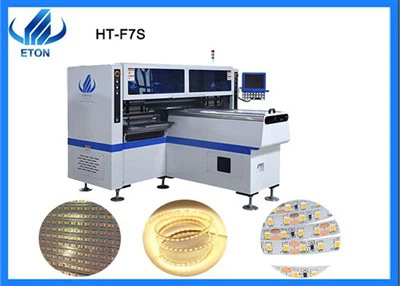

Learn More2 Mounting Modules LED Light Machine

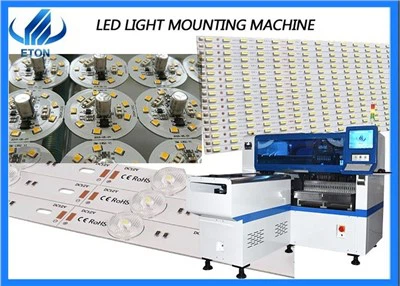

Learn MoreBulb Panel Street Power Driver Lens Products Smd Mou...

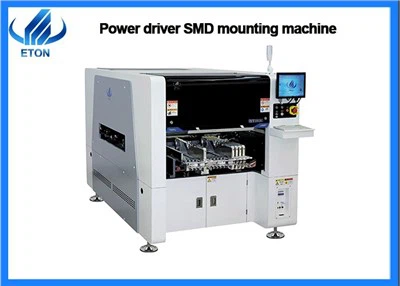

Learn MoreLight Power Driver SMD Mounting Machine

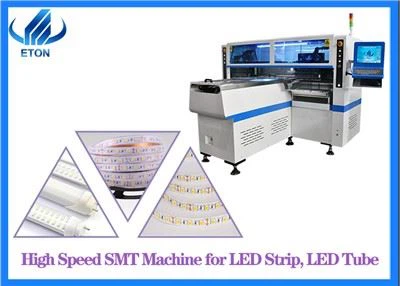

Learn MoreLED Mounter OfTube Light SMT Machine
