LED Bulbs Pick And Place Machine

Name: China LED Bulbs Pick And Place Machine Manufacturers Suppliers Factory - Good Price - Eton Automation
Brand: ETON
SKU: 198265755

Product features Single module magnetic linear motor multifunctional pick and place machine. Vision alignment flight identification,Mark correction. Mounting components:LED chip,capacitors, resistors,lens,IC,shaped components.etc. component-MIN size 0404,MAX height 15mm. Exclusive patented...

Send Inquiry

Features

Product features

Single module magnetic linear motor multifunctional pick and place machine.
Vision alignment flight identification,Mark correction.
Mounting components:LED chip,capacitors, resistors,lens,IC,shaped components.etc.
component-MIN size 0404,MAX height 15mm.
Exclusive patented technology:Group picking and separately placing、separately picking and separately placing.

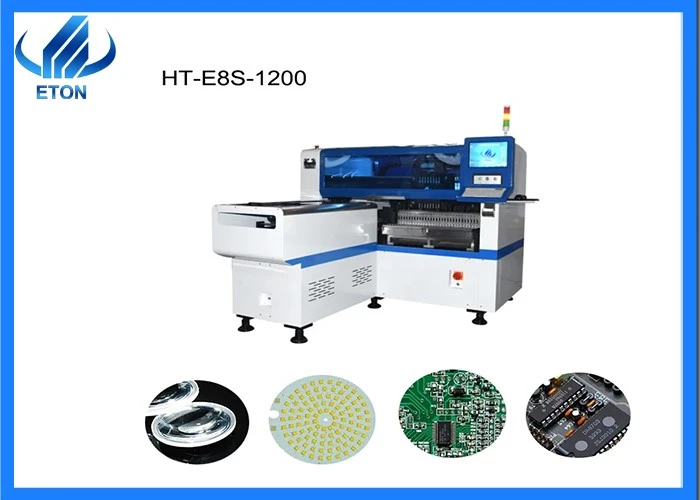

product-700-500

Application
Multi-funcational pick and place machine, Wide-use for led bulb, DOB, drivers, Lens, downlights, etc., full functioning. can mount kinds of components, led chip, resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.

product-754-483

Technical parameter

Model	HT-E8S-1200
Dimension	255016501550mm
PCB size(L* W)	Max:1200500mm Min；100100mm
Mounting mode	Group picking and separately placing、separately picking and separately placing
No.of camera	2setsDigital camera（Digital camera）
Components	LED chip、capacitors、resistors、IC、shaped components、etc.
No.of feeders station	28PCS
No.of nozzles	12PCS
Conveyor transmission	Max Length：1200mm
Electrical control	Independent research and development by ETON
X,Y,Z Axis drive way	High-end magnetic linear motor +Servo motor
Feeding way	Electric feeder with double motor

Company introduction

Shenzhen ETON Automation Equipment Co.,Ltd. -----Manufacturer of SMT automatic pick and place machine.

Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Quality principle: Quality First, Client-oriented, Continuous Improvement!

ETON’s purpose: to create value for customers, creating benefits for society.

ETON Vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
