Double Rail Four Modules Of Placement Heads Strip Light Making Machine

Double Rail Four Modules Of Placement Heads Strip Light Making Machine

Production Introduction of Pick and Place Machine T9-2S

1. High-speed Modular Head, ETON Tech Adjustable Placement Head.

2. Apply to 3014/3020/2835/5050 resistor,capacitor,bridge rectifier etc.

3. Component picking position can be adjusted according to PCB pad pitch, min 6.5mm.

4. Unique Design Component Leaking Detection And Individual Component Refill Function: Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.

5. Ultra-high-speed Capacity: The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.

6. Adjust the conveying platform according to various roll to roll strip,range 250士10mm,the max length range is 1M per cycle.

7. The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to realize the function of two time picking and once placing.

8. The range of feeding station is double of placement head,can produce four kinds of materials at the same time.

9. Intelligent electric feeder,supporting high-speed machine series.

10. Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors.

T9-2S of Technical Parameter

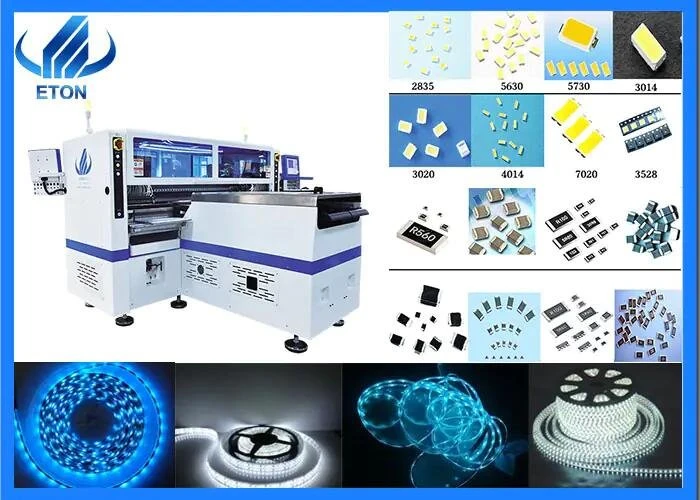

T9-2S Picture

Application of HT-T9-2S

Apply to 5M,10M,25M, 50M or any length of flexible strip and Roll to Roll.

Package and Delivery

All machines are packed with vacuum and wooden packing like the one in the pictures.

Step 1. Film packaging

Prevent the machine from dust ,water,crash and shaking.

Step 2. Add foam+film packaging

Double safe protection,Prevent the machine from crash and shaking.

Step 3. Unique tin foil packaging

Add tin foil packing can prevent the film from scratch broken.

Step 4. customized Strong wood carton packing

The customized strong wood packing for ocean ship,The machines are fix in the wood carton, effectively prevent collision and shock.

Service

Maintenance period 1 year

One year warranty during warranty any parts that need to be repaired and replaced will be free.

Software and hardware lifetime maintenance

Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.

Visit customers regularly and gather information

Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.

Provide the latest information about technology and equipment

We give professional technology suggestions to our clients. And share the updated news with our clients

On-site service

We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.

According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.

FAQ of Pick and Place Machine

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.
