Products
Double Module Multifunctional Led Bulb Mounter
1.RT-2:Double module magnetic linear motor multifunctional pick and place machine. 2.This machine has 20 head (each part 10 head), 64 feeder stations,which can produce two types of products at the same time. 3.Components:LED chip, capacitors,resistors,shaped components,etc. 4.This machine equipped with 4 sets of camera, high mounting accuracy. 5.RT-2 machine optimal mounting speed reached 80000CPH.
Features
Double module multifunctional led bulb mounter
Machine features:
1.RT-2:Double module magnetic linear motor multifunctional pick and place machine.
2.This machine has 20 head (each part 10 head), 64 feeder stations,which can produce two types of products at the same time.
3.Components:LED chip, capacitors,resistors,shaped components,etc.
4.This machine equipped with 4 sets of camera, high mounting accuracy.
5.RT-2 machine optimal mounting speed reached 80000CPH.
6.Feeding way:Electric feeder with double motor.
RT-2 machineTechnical Parameter:
Model | RT-2 |
Dimension(L*W*H) | 1200*1930*1500mm |
PCB Length width | Bilateral dual-track: Max:450*300mm Unilateral dual-track:Max:450*540mm Min:80*80mm |
Weight | 2500kg |
PCB thickness | 0.1~6mm |
Mounting mode | Group picking and separately placing, separately picking and separately placing |
Mounting height | ≤15mm |
Mounting speed | 80000cph |
No. Of feeders station | 64 PCS |
No. Of head | 20 PCS |
X,Y,Z Axis drive way | High-end magnetic linear motor |
Feeding way | Electric feeder with double motor |
Application of Pick and Place Machine RT-2:

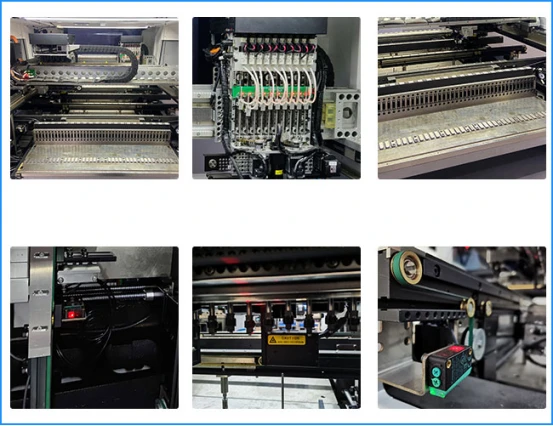

Machine main part:
Certification:
The research and development of the machine has been guaranteed and obtained patent recognition. It has the world's first invention patent, 9 invention patents, 12 software copyrights and 112 utility model patents.
Services:
Professional solutions: Provide professional SMT Full line solutions.
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime.
FAQ:
1.Does your company have machines that can mount 0201 components?
Of course, our company has HONOR series machines can mount 0201 components
2.How are your product sales and customers?
ETON is a leading pick and place machine manufacturer in China,
ETON machine have been exported more than 20 countries , such as India, Turkey, Egypt, Thailand, Vietnam, Etc. In China, more than 70% big led lighting company are our clients.
3.How is the working efficiency of the machine?
The working efficiency of the machine is very high, and it will be more efficient if it is used in the production line with other related machines.
Hot Tags: double module multifunctional led bulb mounter, China, suppliers, manufacturers, factory, price, cheap, quotation, Ultra Speed Led Strip SMT Mounter, High end Magnetic Linear Motor Multifunctional SMT Machine, LED Assembly 250000CPH SMT Mounter, 100M Flexible Strip Production Placement Mounter, 120000CPH Pick And Place Machine, LED Lighting PCB Stencil Printer For Bulb
