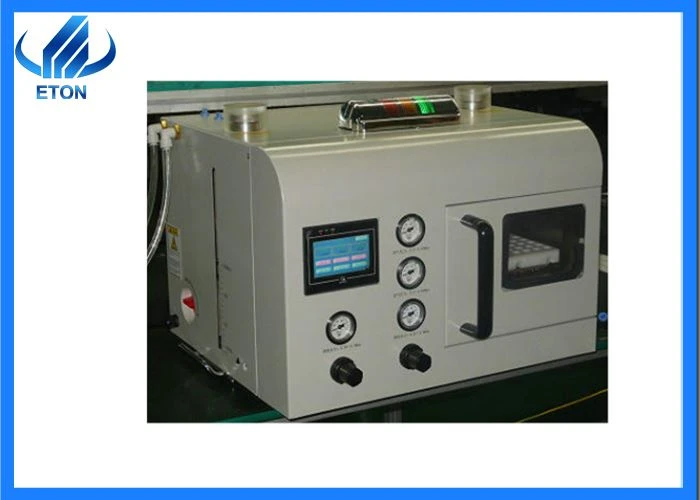

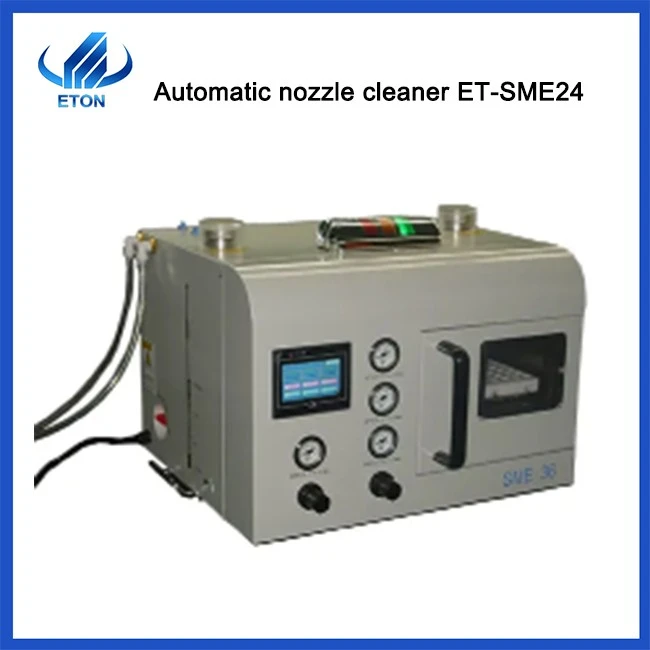

Automatic Nozzle Cleaner wash a large amount

Features:



pressure	pressure	compressed air
	Intake pressure setting	0.5～0.55MPa
	Injection pressure setting	0.35～0.38MPa
	Nozzle injection pressure	≤0.4MPa
Tube	Intake manifold	￠12tube
	Drain tank water pipe	￠8tube
Cleaning liquid	Cleaning liquid	Industrial deionized water
	Liquid consumption	≤300cc/h(5cc/min)
	Capacity of water storage tank	1200cc
Power Supply	Power Supply	AC220～240V
	Plug	3-Pin
	Consumption of electricity	≤0.1Kw
Others	Outline size	655(L) x 560(W) x 475(H)
	Weight	（Including cleaning fluid 2000cc）

Comparison with traditional cleaning:

1. Manual air gun

The efficiency of manual cleaning is low, the surface and lumen of suction nozzle cannot be cleaned, and the inner hole is easy to be damaged by steel wire poke;

The cleaning effect is different;

The use of cleaning solution and alcohol may cause the reflection layer to fall off.

2. Ultrasonic cleaning

Low cost and high efficiency;

During the cleaning process, it is easy to cause the collision between the suction nozzles, resulting in the damage or fall off of the black coating on the surface;

Our advantage

ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.

Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.

Market

Packages

Our package step is follow the blowing:

STEP 1: Film packaging to prevent the dust and water;

STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;

STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;

STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.

Delivery: by sea, air, land transport.

Service

Pre-sale service

Provide suitable production plan

Advise on plant electrical equipment and layout

Sale service

Report machine status in time

Follow up and send test machine video

After-sales service

Software lifetime upgrade

24 hours to deal with problems online

Engineers can arrive on site to teach operation and debug the machine

Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
