How to troubleshoot Smt Equipment Line?

Sep 18, 2025

Troubleshooting an SMT (Surface Mount Technology) equipment line is a critical skill for anyone involved in the electronics manufacturing industry. As a supplier of SMT equipment lines, I've encountered a wide range of issues over the years. In this blog post, I'll share some practical tips and strategies on how to troubleshoot common problems in an SMT equipment line.

Understanding the SMT Equipment Line

Before diving into troubleshooting, it's essential to have a good understanding of the different components of an SMT equipment line. An SMT line typically consists of a solder paste printer, pick-and-place machines, reflow ovens, and inspection equipment. Each of these components plays a crucial role in the surface mount process, and any malfunction can lead to production issues.

Common Problems and Troubleshooting Steps

1. Solder Paste Printing Issues

Inconsistent Solder Paste Deposition: This can be caused by a variety of factors, such as a clogged stencil, incorrect squeegee pressure, or improper solder paste viscosity. To troubleshoot, start by inspecting the stencil for any blockages. Clean the stencil thoroughly using a suitable cleaning agent. Check the squeegee pressure and adjust it according to the manufacturer's recommendations. Also, ensure that the solder paste is stored and used correctly, as improper storage can affect its viscosity.
Solder Paste Bridging: Bridging occurs when the solder paste connects two adjacent pads, leading to short circuits. This can be due to a misaligned stencil, excessive solder paste thickness, or a dirty stencil. Align the stencil properly with the PCB (Printed Circuit Board) and adjust the stencil thickness if necessary. Clean the stencil regularly to prevent the buildup of solder paste residue.

2. Pick-and-Place Machine Problems

Component Placement Errors: These can include misaligned components, missing components, or incorrect component orientation. Check the machine's vision system for any issues, such as dirty cameras or incorrect calibration. Make sure that the feeder settings are correct and that the components are loaded properly into the feeders. Inspect the vacuum nozzles for any blockages or damage, as this can affect the pick-and-place accuracy.
Feeder Malfunctions: Feeders are responsible for supplying components to the pick-and-place machine. If a feeder is not working correctly, it can cause component placement errors. Check the feeder for any mechanical issues, such as jammed components or broken parts. Clean the feeder regularly to prevent the buildup of debris. Adjust the feeder tension and height settings according to the component specifications.

For more information on pick-and-place machines, you can check out our Led Assembly Machine With 8000CPH Bulb Led Machine and Max Height 15mm LED Making Mounting.

3. Reflow Oven Issues

Inconsistent Temperature Profiles: A reflow oven is used to melt the solder paste and attach the components to the PCB. If the temperature profile is not consistent, it can lead to poor solder joints. Check the oven's heating elements for any damage or malfunction. Calibrate the temperature sensors regularly to ensure accurate temperature readings. Adjust the conveyor speed and the oven's zone temperatures according to the solder paste and component specifications.
Solder Ball Formation: Solder balls are small spheres of solder that can form during the reflow process. This can be caused by excessive solder paste, improper flux activation, or a dirty oven. Reduce the amount of solder paste applied, ensure that the flux is activated correctly, and clean the oven regularly to prevent the buildup of solder residue.

4. Inspection Equipment Problems

False Positives or Negatives: Inspection equipment, such as automated optical inspection (AOI) machines, is used to detect defects in the assembled PCBs. If the inspection equipment is generating false positives or negatives, it can lead to unnecessary rework or missed defects. Check the inspection parameters, such as lighting settings, camera focus, and threshold values. Calibrate the inspection equipment regularly to ensure accurate defect detection.
Software Glitches: Inspection equipment often relies on software to analyze the images and detect defects. If there are software glitches, it can affect the inspection accuracy. Update the inspection software to the latest version and check for any compatibility issues with the operating system or other hardware components.

Preventive Maintenance

Preventive maintenance is key to minimizing the occurrence of problems in an SMT equipment line. Here are some preventive maintenance tips:

Regular Cleaning: Clean all the equipment components, such as stencils, feeders, nozzles, and ovens, on a regular basis. This helps to prevent the buildup of debris and solder paste residue, which can cause malfunctions.
Calibration: Calibrate the equipment regularly to ensure accurate operation. This includes calibrating the temperature sensors, vision systems, and inspection equipment.
Component Replacement: Replace worn-out or damaged components, such as squeegees, nozzles, and heating elements, before they cause problems. Keep a stock of spare parts to minimize downtime in case of component failures.
Operator Training: Provide proper training to the operators on how to use and maintain the SMT equipment. This helps to ensure that the equipment is operated correctly and that any potential problems are detected early.

Conclusion

Troubleshooting an SMT equipment line requires a systematic approach and a good understanding of the equipment components. By following the tips and strategies outlined in this blog post, you can effectively troubleshoot common problems and minimize downtime in your SMT production line. If you're in the market for high-quality SMT equipment, including Led Assembly Machine With 8000CPH Bulb Led Machine, Max Height 15mm LED Making Mounting, and LED Strip Light Customized Cutting Mold, feel free to contact us for more information and to discuss your specific requirements. We're here to help you optimize your SMT production process and achieve the best possible results.

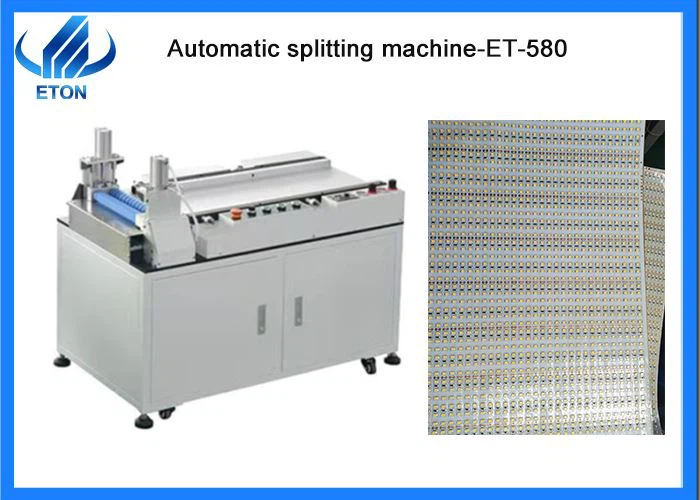

LED Strip Light Customized Cutting Mold Max Height 15mm LED Making Mounting
